IEC 61000-4-6 — Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-6 — Immunity to conducted disturbances, induced by radio-frequency fields

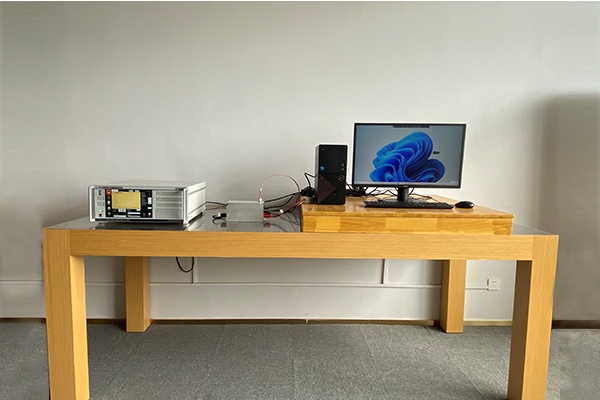

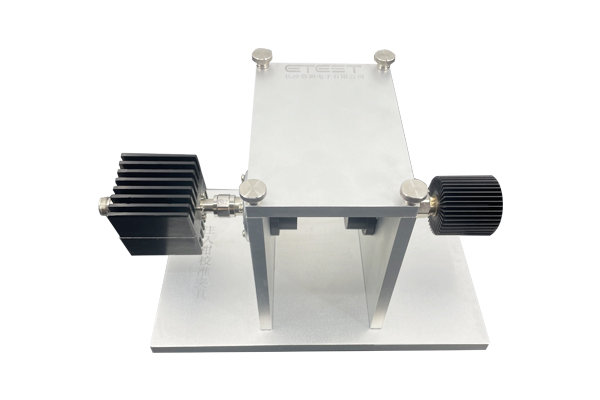

RF Conducted Immunity Test System is designed to simulate radio frequency conducted disturbances generated by electromagnetic environments and evaluate the immunity performance of electrical and electronic equipment.
The system covers a frequency range of 150 kHz to 230 MHz and integrates a high-performance signal generator, power amplifier, power meter, and directional coupler to provide a complete solution for conducted RF immunity testing.
·Built-in power amplifier, signal generator, power meter and directional coupler

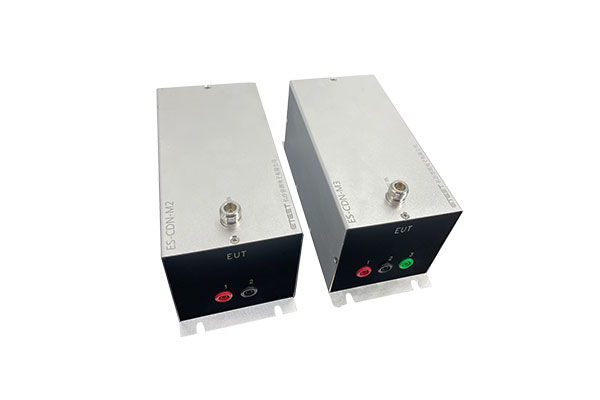

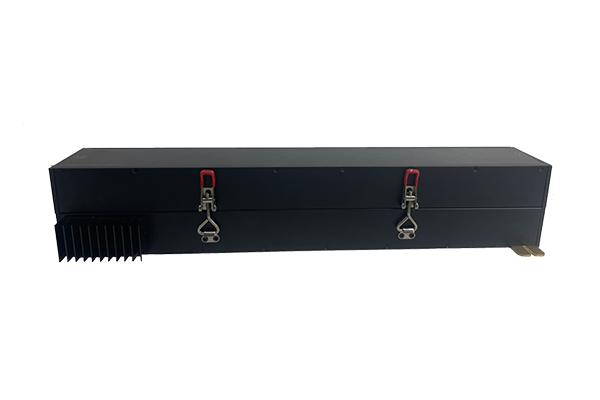

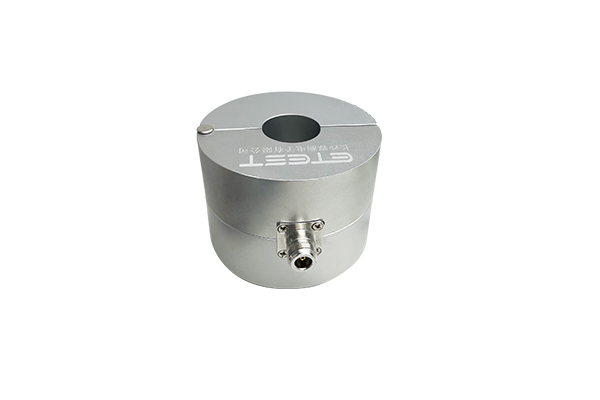

·Supports output above 10 Vrms for CDN method, Electromagnetic clamp method and current clamp method
·Equipped with 10.1-inch intelligent capacitive touch screen for easy operation
·Supports arbitrary variation of calibration or test curves
·Automatic test report storage with freely editable report format
·Supports non saturated power check, compliant with IEC 61000-4-6 2023
·System frequency range: 150 kHz~230 MHz
·Built-in 50 W and 100 W linear amplifiers
·Whole system calibration time: less than 30 s
·Supports tests on arbitrary frequency bands
·Dwell time: 0.5 s~999 s
| Parameter | Specification |
| Simulation Item | RF Conducted Interference Immunity Test |
| System Output Parameters | |
| Frequency Range | 150 kHz–230 MHz |
| Forward / Reverse Power Monitoring | Supported (Optional) |
| Signal Source | |
| Frequency Range | 9 kHz–3 GHz |
| Frequency Resolution | 0.01 Hz |
| Output Level | -120 dBm to +10 dBm |
| Output Level Resolution | 0.1 dBm |
| Setting Time | 1 ms |
| Unmodulated Signal | Sine Wave |
| Modulation Modes | CW Continuous Wave, AM Amplitude Modulation, PM Pulse Modulation |
| Modulation Frequency | 1 Hz–10 kHz |
| AM Modulation Depth | Supports 1%–99% Amplitude Modulation |
| Voltage Standing Wave Ratio (VSWR) | ≤1.2 |
| Connector | N-Type |
| Power Amplifier | |
| Frequency Input Range | 150 kHz–300 MHz |
| Output Power | 50 W / 100 W |
| Gain | 45 dB |
| Harmonics | <15 dBc |
| Harmonic Distortion | <-10 dBc |
| Power Meter | |
| Frequency Range | 100 kHz–400 MHz |
| Measurement Level | -50 dBm to +10 dBm |
| Measurement Accuracy | ≤0.5 dB |
| Channels | 3 Channels |
| Connector | N-Type |
| Directional Coupler | |
| Coupling | 50 dB |
| Maximum Input Power | 150 W |
| Frequency Range | 100 kHz–400 MHz |
New Energy Industry
Low Voltage Electrical Appliances
Telecommunications and Communication Equipment
Test & Measurement Instruments
Household Appliances
Railway and Rail Transit Systems
Medical Devices
Automotive Electronics
Power Electronics and Electrical Systems
Lighting and LED Products
Industrial Equipment
Automation and Control Systems
Consumer Electronics
Aerospace and Defense Electronics (Optional)
