Simulate transient pulse interference generated by automotive electronics along power lines under various operating conditions
Simulate transient pulse interference generated by automotive electronics along power lines under various operating conditions

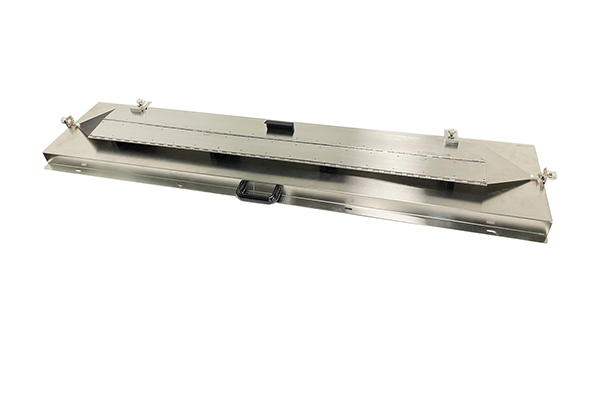

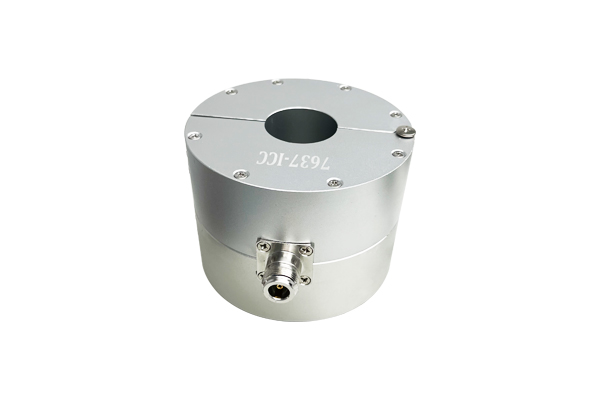

Automotive Electronic Transient Immunity Generator(simulator) features an integrated design that incorporates pulse waveforms 1, 1bis, 2a, -2a, 3a, 3b, 5a, 5b, 6, and 7, complying with standards such as ISO 7637-2, GB/T 21437.2, ISO 7637-3, and GB/T 21437.3.
· Integrated-unit design, incorporating Pulse-1,1bis,2a,2a,3a,3b,5a,5b,6,7 waveforms · Freely programmable pulse timing and interval
· 10.1-inch intelligent capacitive touch-screen display
· Built-in coupling&decoupling network
· 4U/19-inch form-factor
· Pre-configured standard test levels
· Identical pulse-width output for Pulse 5a and 5b
· 1 ms resolution pulse width adjustment for Pulse 5a and 5b
· Pulse-width range for Pulse 5a and 5b: 40 ms ~ 9999 ms
· The pulse width of the Pulse 5a output is exactly the same as that of the Pulse5b
output.
· USB-export of editable test reports
· Remote control via host-computer
| Parameter | Specification |
| Simulation Item | Electrical Fast Transient / Burst (EFT) Immunity |
| EUT Power Capacity | AC: 0–220 V / 16 A; DC: 0–110 V / 16 A |
| Pulse Voltage | 0.2 kV–5 kV |
| Pulse Voltage Resolution | 1 V |
| Output Voltage Polarity | Positive, Negative, Positive-then-Negative, Negative-then-Positive |
| Internal Resistance | 50 Ω |
| Frequency Range | 0.1 kHz–1000 kHz |
| Frequency Resolution | 0.1 kHz |
| Standard Frequency | 5 kHz, 100 kHz |
| Pulse Front Time | 5 ns |
| Pulse Width (50 Ω) | 50 ns |
| Pulse Width (1 kΩ) | 35 ns–150 ns |
| Number of Pulses per Burst | 1–500 |
| Burst Cycle Time | 15 ms–9999 ms |
| IEC Standard | Built-in IEC standards, supporting testing according to standard requirements |
| Interface | RS485, LAN |
| CDN | Single-phase three-wire (built-in) / DC compatible |
| Operating System | Android |
| Display | 10.1" Intelligent Capacitive Touch Screen |
| External Interfaces | HDMI, USB, BNC, etc. |
| Operating Environment | Temperature: 10℃–40℃; Humidity: 30%–70% |
| Power Supply | AC: 110 V / 220 V, 50 Hz / 60 Hz |
| Dimensions | 4U / 19" Standard Rack Cabinet |
| Weight | 10 kg |
